Desktop companion robots are the most recent craze within the maker neighborhood. It looks like everyone seems to be making their very own nowadays. And why not? Within the easiest case, they solely require a number of elements that may be assembled in properly beneath an hour. For this tiny little bit of effort, you may have a bit of robotic that retains you firm through the workday or helps you blow off some steam whenever you get annoyed together with your weekend initiatives.
Nevertheless, most of those little robots are very fundamental and are barely even worthy of being known as “robots.” They’re nonetheless enjoyable to play with, however that may fade fairly shortly when the identical previous routine begins feeling repetitive. In fact, these little companions may be extra advanced, and YouTuber Tech Talkies has simply detailed the construct course of of 1 such desk buddy. It nonetheless manages to maintain issues easy so that nearly anybody can construct one, but it additionally has some extra performance that may hold it attention-grabbing for for much longer.
The ESP32C3 Tremendous Mini (📷: Tech Talkies)

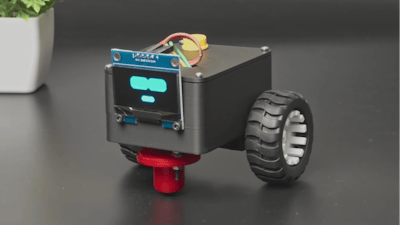

The undertaking is constructed across the ESP32C3 Tremendous Mini. This compact growth board serves because the robotic’s mind, coordinating its motion, dealing with consumer enter, and controlling the show. Regardless of the modest {hardware}, the ensuing robotic nonetheless feels very expressive because of a small 1.3-inch OLED display mounted on the entrance. This show offers visible suggestions, permitting the robotic to speak easy states and reactions to the consumer.
Not like most desk robots, this one doesn’t sit nonetheless. Motion is dealt with by a pair of N20 geared motors related via a DRV8833 motor driver. These motors energy the robotic’s drive wheels, enabling it to wander across the floor of a desk. To stabilize the platform, the entrance finish rides on a caster wheel. This did complicate issues considerably: as a result of caster wheels are available a wide range of sizes, the robotic initially sat inconsistently. The creator solved this by stacking extra nuts beneath the wheels to attain the correct top and hold the chassis stage with the drive wheels.
Assembling the {hardware} (📷: Tech Talkies)
Energy for the robotic comes from a chargeable LiPo battery paired with a charging and increase module. This board permits the battery to be safely charged whereas additionally stepping the voltage as much as a gentle 5 volts for the electronics. All the system suits neatly inside a customized 3D-printed enclosure designed particularly for the elements used within the undertaking.
So far as interactions are involved, a contact button controls the machine’s energy states—one press turns it on and two presses energy it down. As soon as lively, the robotic waits patiently for consideration. When the consumer pets it, the desk buddy springs to life and begins roaming across the desk. If the consumer continues to pet it, the robotic pauses, virtually as if having fun with the eye earlier than setting off once more as soon as the interplay stops.
Tech Talkies is planning to replace this desk buddy sooner or later, so make sure you keep tuned to Hackster Information for the most recent. Within the meantime, you may seize the supply code and circuit diagram to create your personal desk robotic.
