Over the previous few years, electrical engineering pupil Nobel Das has made quite a lot of robots with very totally different type elements. Starting from spiders to snakes and arms, every of those robots required quite a lot of design work and energy to construct. However as Das was daydreaming and sketching in school in the future, he got here to the belief that every one of his robots may have been constructed from only a few elementary items.
This reminded Das of the Microbots within the film Huge Hero 6, that are tiny robots that may come collectively to type extra complicated programs. The thought of making his personal Microbots was very interesting, so he determined to present it a go.
A robotic canine design (📷: NOOBOTICS)

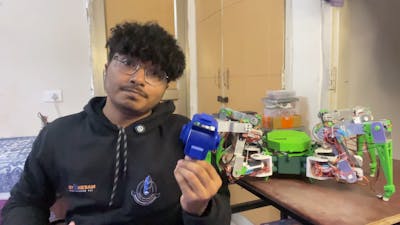

After rigorously wanting over his sketches and previous robotic designs, Das discovered that the entire previous designs may very well be reproduced with simply two sorts of joints — a hinge joint, and a cylindrical revolving joint. However the fictional Microbots are product of a single constructing block, so Das mixed the joints right into a single unit that performs each features. After finishing the design, a bodily model of it was 3D printed.
That took care of the mechanical side of the construct, however the robotic would nonetheless want electronics and wiring for the management system and environmental sensing. To accommodate these capabilities, a technique was designed to facilitate communication between items. Das primarily based the design on community hubs, with an Arduino microcontroller growth board standing in for the central hub. When despatched a message, the Arduino relays it to all different items. Every message signifies the meant recipient, so all different items will merely ignore the message.
An Arduino handles communication between items (📷: NOOBOTICS)
Das demonstrated how these constructing blocks may very well be used to construct dog-like and spider-like robots, however in concept, they may very well be helpful for lots of different designs as nicely. You’ll want to keep tuned to see the place this undertaking goes subsequent!
