If the COVID-19 pandemic taught us something, it was that we dwell in a unclean world. On any given day, a typical particular person faces publicity to micro organism and viruses at each flip. Even explicitly hygienic actions can, themselves, be soiled. Think about handwashing, which could pressure you to the touch a faucet knob after which a paper towel dispenser after you’ve already scrubbed your mitts. Movement sensors try to deal with these points, however they’re unreliable at the perfect of occasions. That’s why 3megabytesofhotram constructed “Say Loudly,” a voice-activated paper towel dispenser.
To keep away from an pointless reinvention of the wheel, 3megabytesofhotram began with a handbook paper towel dispenser made by Scott. That’s the type with a crank on the facet that wet-handed customers flip to dispense a paper towel. It was vital to make use of a mannequin like that, as a result of this conversion motorizes the shelling out mechanism and the crank supplies a hyperlink for connecting the motor. It may need been even simpler to start out with a motion-activated dispenser that already had a motorized mechanism, however these are dearer.
3megabytesofhotram wanted their conversion to do two issues: detect the right voice command and rotate the shelling out mechanism.
To realize that first aim, 3megabytesofhotram used a Raspberry Pi 4 Mannequin B (2GB mannequin) to run speech recognition software program. Sadly, this venture doesn’t but have full documentation and 3megabytesofhotram doesn’t say what software program they used. We don’t even know if that runs domestically or if it goes by way of a cloud-based service. All we all know is that the Raspberry Pi listens for voice command by way of a microphone related by way of a MOSWAG USB adapter.
The shelling out mechanism is a little more easy. A small geared DC motor, with an output shaft turning at simply 10rpm, drives the beforehand handbook crank. The Raspberry Pi controls that by way of a traditional H-bridge motor driver module. 3megabytesofhotram designed a couple of 3D-printed adapter elements, like pulleys, to attach the motor to the crank mechanism with a 10mm toothed timing belt.
You received’t be capable to carry out this conversion your self till 3megabytesofhotram fleshes out the venture documentation, however it’s nonetheless cool to see in motion.

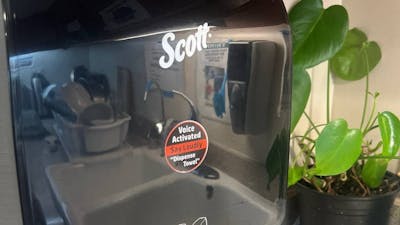

And if you happen to’ve learn this far with out catching it, it is best to know that this was impressed by a foolish prank. That authentic prank was to place a sticker on a daily paper towel dispenser that claims “Voice activated. Say loudly, ‘Dispense towel.’” So, that is one thing of a double-reverse-prank, as this truly does require voice activation.
