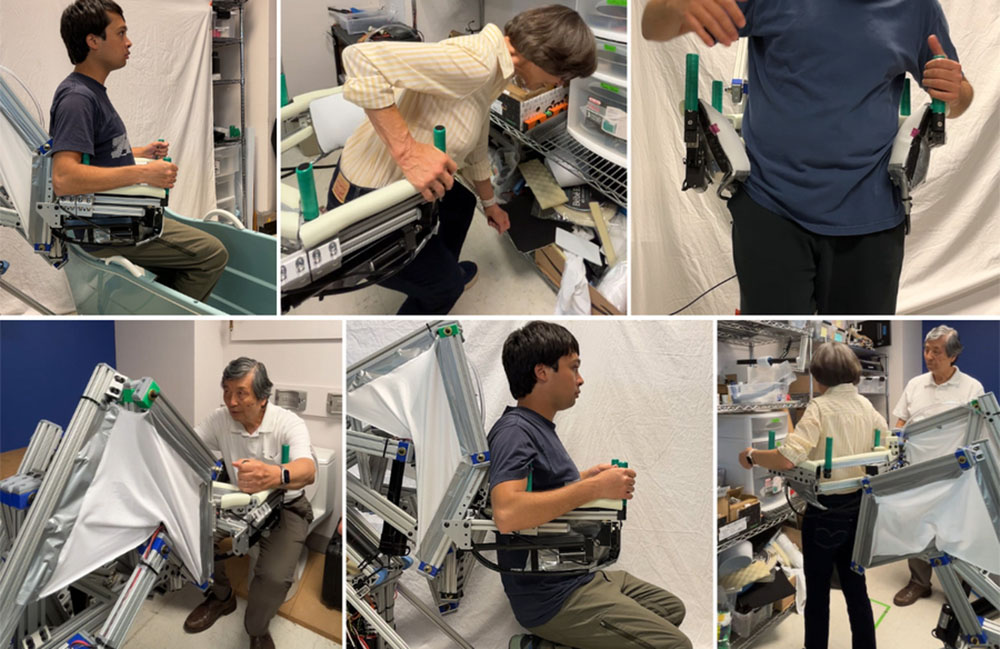

Six help eventualities with a prototype of a robotic being developed at MIT. Prime row: getting out and in of a tub, bending down to succeed in objects, and catching a fall. Backside row: powered sit-to-stand transition from a rest room, lifting an individual from the ground, and strolling help. | Picture courtesy of the MIT researchers
A bunch of MIT engineers is engaged on robots to assist deal with eldercare challenges within the U.S. The crew has constructed and examined the Aged Bodily Help Robotic, or E-BAR, a cellular robotic designed to bodily help the aged and stop them from falling as they transfer round their properties.
The U.S. inhabitants is older than it has ever been. Right now, the nation’s median age is 38.9, which is sort of a decade older than it was in 1980. And the variety of adults older than 65 is predicted to balloon from 58 million to 82 million by 2050. The problem of caring for the aged — amid shortages in care staff, rising well being care prices, and evolving household constructions — is an more and more pressing societal challenge, mentioned the researchers.
E-BAR acts as a set of robotic handlebars that comply with an individual from behind. A person can stroll independently or lean on the system’s arms for help.
The robotic can help the particular person’s full weight, lifting them from sitting to standing and vice versa alongside a pure trajectory. And the arms of the robotic can catch them by quickly inflating facet airbags if they start to fall.
With their design, the researchers hope to stop falls, which right this moment are the main explanation for damage in adults who’re 65 and older.
“Many older adults underestimate the danger of fall and refuse to make use of bodily aids, that are cumbersome, whereas others overestimate the danger and should not train, resulting in declining mobility,” mentioned Harry Asada, the Ford Professor of Engineering at MIT. “Our design idea is to offer older adults having steadiness impairment with robotic handlebars for stabilizing their physique. The handlebars go anyplace and supply help anytime, each time they want.”
Researchers prioritize affected person wants, desires in robotic design
Asada’s group at MIT develops quite a lot of applied sciences and robotic aides to help the aged. In recent times, others have developed fall-prediction algorithms and designed assistive units, together with robotic walkers, wearable, self-inflating airbags, and robotic frames that safe an individual with a harness and transfer with them as they stroll.
“I believe eldercare is the following nice problem,” mentioned E-BAR designer Roberto Bolli, a graduate scholar within the MIT Division of Mechanical Engineering. “All of the demographic tendencies level to a scarcity of caregivers, a surplus of aged individuals, and a robust need for aged individuals to age in place. We see it as an unexplored frontier in America, but additionally an intrinsically fascinating problem for robotics.”
In designing E-BAR, Asada and Bolli aimed for a robotic that primarily does three duties: offering bodily help, stopping falls, and safely and unobtrusively shifting with an individual. What’s extra, they regarded to dispose of any harness, to present a person extra independence and mobility.
“Aged folks overwhelmingly don’t wish to put on harnesses or assistive units,” Bolli mentioned. “The concept behind the E-BAR construction is, it offers physique weight help, energetic help with gait, and fall catching whereas additionally being utterly unobstructed within the entrance. You possibly can simply get out anytime.”
The crew regarded to design a robotic particularly for getting older in place at house or serving to in care services. Primarily based on their interviews with older adults and their caregivers, they got here up with a number of design necessities. These included that the robotic should match via house doorways, enable the person to take a full stride, and help their full weight to assist with steadiness, posture, and transitions from sitting to standing.
Bolli and Asada will current a paper detailing the design of E-BAR on the IEEE Convention on Robotics and Automation (ICRA) subsequent week.
Extra in regards to the E-BAR design

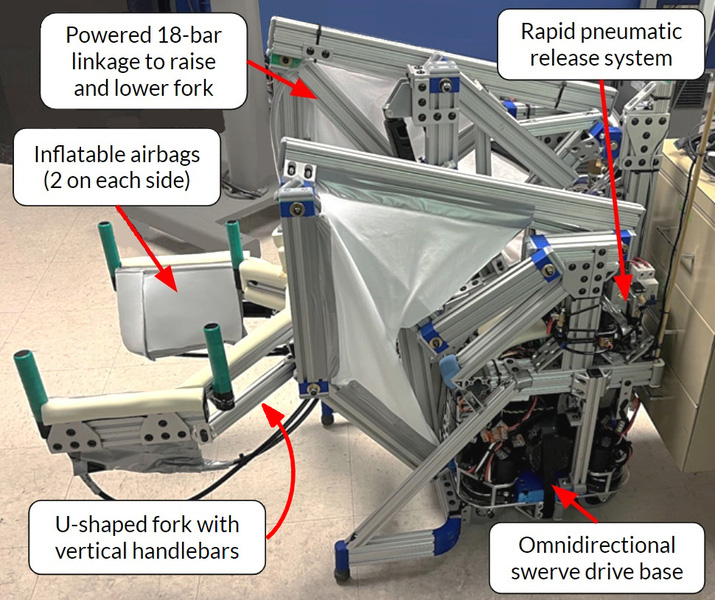

The assistive system consists of inflatable airbags, a U-shaped fork with vertical handlebars, an omnidirectional swerve drive base, a fast pneumatic launch system, and a powered 18-bar linkage to lift and decrease the fork. | Picture courtesy of the MIT researchers
The robotic consists of a heavy, 220-lb. base whose dimensions and construction have been optimized to help the burden of a median human with out tipping or slipping. Beneath the bottom is a set of omnidirectional wheels that enable the robotic to maneuver in any course with out pivoting, if wanted.
The MIT scientists likened the motion to a automotive’s wheels shifting to slip into an area between two different automobiles, with out parallel parking.
Extending out from the robotic’s base is an articulated physique comprised of 18 interconnected bars, or linkages. These can reconfigure like a foldable crane to raise an individual from a sitting to standing place, and vice versa. Two arms with handlebars stretch out from the robotic in a U-shape, which an individual can stand between and lean in opposition to in the event that they want extra help.
Lastly, every arm of the robotic is embedded with airbags comprised of a mushy materials that may inflate immediately to catch an individual in the event that they fall, with out inflicting bruising on impression. The researchers asserted that E-BAR is the primary robotic in a position to catch a falling particular person with out wearable units or use of a harness.
They examined the robotic within the lab with an older grownup who volunteered to make use of the robotic in varied family eventualities. The crew discovered that E-BAR may actively help the particular person as they bent down to select one thing up from the bottom and stretched as much as attain an object off a shelf — duties that may be difficult to do whereas sustaining steadiness. The robotic additionally was in a position to raise the particular person up and over the lip of a bath, simulating the duty of getting out of a tub.
Now accepting session submissions!
MIT researchers look forward
In its present model, the robotic is operated by way of distant management. In future iterations, the MIT crew plans to automate a lot of the bot’s performance, enabling it to autonomously comply with and bodily help a person. The researchers are additionally engaged on streamlining the system to make it slimmer and extra maneuverable in small areas.
Bolli famous {that a} design like E-BAR could be appropriate to be used within the house by aged individuals who nonetheless have a average diploma of muscle power however require assistive units for actions of each day dwelling. “Seeing the expertise utilized in real-life eventualities is admittedly thrilling,” he mentioned.
Of their present paper, the researchers didn’t incorporate any fall-prediction capabilities in E-BAR’s airbag system. However one other undertaking in Asada’s lab, led by graduate scholar Emily Kamienski, has centered on creating algorithms with machine studying to manage a brand new robotic in response to the person’s real-time fall danger stage.
Alongside E-BAR, Asada sees totally different applied sciences in his lab as offering totally different ranges of help for folks at sure phases of life or mobility.
This work was supported, partially, by the Nationwide Robotics Initiative and the Nationwide Science Basis.

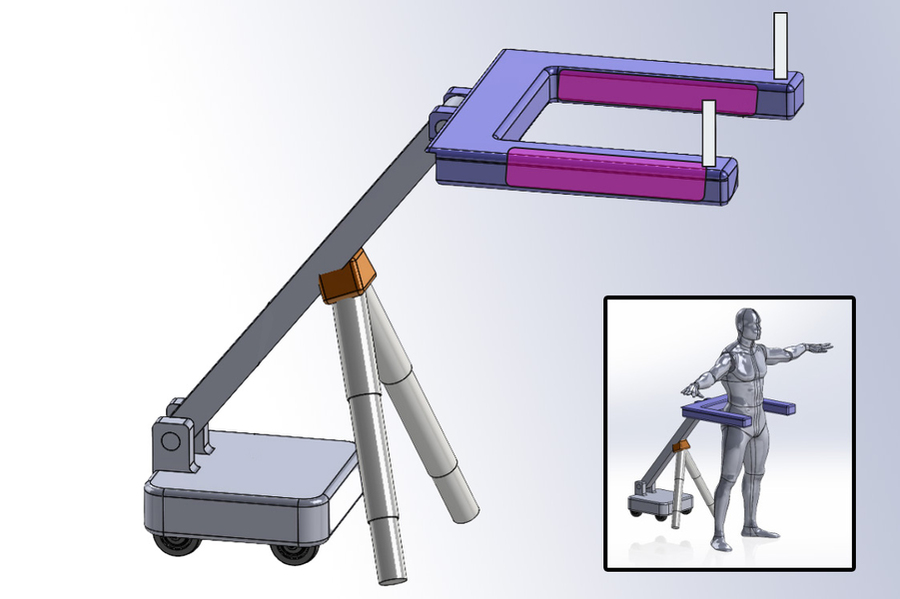

The crew engaged on streamlining E-BAR, as pictured, to make the system slimmer and extra maneuverable in small areas. | Picture courtesy of the MIT researchers
