There are many explanation why it is best to construct a robotic in your spare time. For starters, you may study loads and decide up some new abilities that may come in useful later. It is usually a number of enjoyable, and the robotic you construct can entertain you for years to come back.
When you’re in search of a very good place to begin, then it is best to undoubtedly think about constructing Harish Choudhary’s little robotic known as Otto. This 3D-printed bipedal robotic is affordable, simple to construct, and as lovable as might be. With a number of faucets in your cellphone, Otto can discover your desk and hold you firm.
These elements are about to turn into a robotic (📷: Harish Choudhary)
The undertaking facilities round an accessible electronics platform that makes the robotic each approachable for newbies and versatile for experimentation. On the core of the design is an Arduino Nano growth board, which acts because the robotic’s controller. The Nano plugs into an enlargement board that simplifies the method of connecting motors and sensors, eradicating a lot of the difficult wiring that always discourages first-time robotics builders.
Motion is dealt with by 4 small TowerPro SG90 Micro Servo motors. Two servos are mounted within the torso to regulate the robotic’s legs, whereas the opposite two sit within the toes. Working collectively, these motors enable Otto to stroll, flip, and carry out playful dance routines. Regardless of the simplicity of the {hardware}, the coordinated movement offers the little robotic an enormous persona.

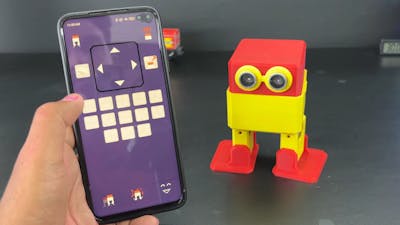

Wi-fi management is made doable by way of the HC‑05 Bluetooth Module, which hyperlinks the robotic to a smartphone. After pairing the machine, customers can management Otto utilizing a devoted cellular app that sends instructions over Bluetooth. With easy on-screen buttons, the robotic can transfer ahead, backward, left, and proper, or set off preprogrammed behaviors reminiscent of dancing and sound results.
The meeting course of (📷: Harish Choudhary)
An ultrasonic distance sensor can be utilized for impediment detection, whereas a small buzzer permits Otto to chirp, beep, and react to its atmosphere. Energy comes from two 3.7-volt lithium-ion batteries linked in collection, delivering roughly 7.4 volts to the system by way of a swap and charging socket.
The robotic’s physique is made fully from 3D-printed elements, together with the pinnacle, torso, legs, and toes. Throughout meeting, the servos are first mounted securely within the torso earlier than the legs and toes are hooked up. Servo wires are fastidiously routed by way of the legs and into the physique to maintain all the pieces tidy. As soon as the electronics are put in, all the system suits neatly contained in the printed shell.
Earlier than the robotic can take its first steps, it wants a little bit of software program. Builders add the management program by way of the Arduino IDE utilizing code developed by Choudhary. This system defines which pins management the servos, buzzer, and Bluetooth module, guaranteeing all the pieces works collectively easily.
For newbies thinking about robotics, Otto is a pleasant introduction to electronics, programming, and mechanical design — all packed right into a robotic that’s arduous to not smile at.
