Non-contact gesture sensing is a novel methodology of interplay and the buyer expertise business has solely scratched the floor of its potential. You in all probability don’t personal a single product that integrates that functionality, until you continue to have one thing like a Microsoft Kinect kicking round. However the potential is certainly there for anybody with the creativity to utilize the expertise — which doesn’t even require costly Kinect-style cameras. And as Corebb reveals in a latest video, it’s potential to construct an reasonably priced non-contact gesture sensor that may even “see” via objects.
This works equally to capacitive contact sensing. In truth, you will have skilled the phenomenon your self for those who’ve ever had a capacitive touchpad, touchscreen, or contact button register enter earlier than you made bodily contact. Producers of these parts normally attempt to tune their sensitivity to forestall such occurrences. The perfect sensitivity for a touchpad, for instance, is simply sufficient to register with gentle contact. However for those who use the identical primary expertise tuned to be very delicate to electrical fields, you may “see” close by motion. You may even detect the gap from the sensor, enabling 3D gesture sensing. That also works when an object is in the best way, as long as the article doesn’t block the electrical fields.
On this case, Corebb used a Microchip MGC3130 E-field sensor designed particularly for 3D monitoring and gesture management. The MGC3130 comes packaged in a useful 28-pin 5×5mm QFN SMD chip. Utilizing the reference design from Microchip as a place to begin, Corebb designed a four-layer PCB to host that chip, its accompanying resistors and capacitors, connectors, and the circuit for creating the required electrical subject.

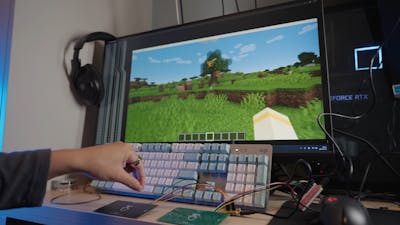

The MGC3130 communicates via I2C, so Corebb began with an I2C-to-USB converter from Microchip that has official help. With that and Microchip’s GestIC SDK software program, Corebb was capable of observe gestures on his PC. From there, he may use these gestures in different software program. In a single instance, he used two of those gesture sensors to manage Minecraft. In one other, he made a program to show gestures into alphanumeric characters, like a non-contact model of the stylus “typing” function that was on outdated Palm Pilot PDAs.
However this gesture sensor design doesn’t require a whole laptop. Bear in mind, it communicates through I2C. Due to this fact, it’s going to work with nearly any microcontroller available on the market and is beneficial for embedded initiatives, too. Corebb wrote an instance sketch for Arduino-compatible microcontrollers and uploaded that to GitHub so you will get began.
