If you wish to play magician for a day, all you must do is inform your mates that you’re shifting. Abra cadabra, alakazam, everybody will disappear proper earlier than your eyes. No one likes to maneuver. No one. However Austin Allen has received an thought that might make it, if not enjoyable, a minimum of bearable. He has constructed the motorized furnishings dolly that nobody has been asking for, however that everybody desires a flip at driving round.
For locomotion, Allen changed the unique swivel casters with a set of two inflexible and two swivel rubber wheels for a smoother and quieter trip. Powering these wheels are two Flipsky 7070 BLDC motors, every managed by a Flipsky 75100 twin ESC working VESC firmware. This twin digital velocity controller permits for impartial management of every motor, which was crucial for the steering mechanism.
An summary of the system’s electronics (📷: Austin Allen)
The mechanical transmission of energy from the motors to the rear wheels is achieved by means of a sequence drive system, harking back to a bicycle. Allen modified Tritan 55VX32 flat sprockets, drilling mounting holes and growing the middle bore to accommodate the wheel meeting. These modified sprockets are then hooked up to 3D-printed adapters, that are in flip mounted to the rear caster wheels utilizing self-tapping wooden screws. The motors are outfitted with both 25-tooth (larger RPM) or 10-tooth (larger torque) Uxcell #25 chain curler sprockets, related to the wheel sprockets by way of a size of #25 chain and grasp hyperlinks. To make sure correct alignment and clearance for the sprockets and chain, Allen used an automotive brake pad spreader device to widen the rear wheel brackets and integrated 3D-printed spacers.
The system is managed by a pair of ESP32-S3 microcontrollers. One is housed in a {custom} 3D-printed enclosure on the dolly itself, speaking wirelessly with a second ESP32-S3 based mostly hand controller. The hand controller, that includes a custom-designed printed circuit board, makes use of two single-axis joystick modules for throttle and steering enter. It’s powered by a chargeable 18650 Li-ion battery and features a shade TFT show with a capacitive contact panel for the person interface.
Wi-fi communication between the hand controller and the dolly-mounted ESP32-S3 permits real-time management of the motors. VESC Instrument software program was used to program the Flipsky ESCs, calibrating the motors and setting parameters for optimum efficiency. Moreover, Allen developed a rudimentary cellphone app utilizing Flutter and Dart, providing another management technique by way of Bluetooth. The app options simulated joysticks, velocity show, and controls for the onboard LED strip lights, which add some visible attraction to the dolly.

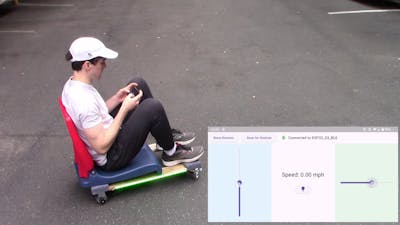

Transferring in model! (📷: Austin Allen)
The dolly can be utilized for shifting furnishings, however since it’s actually a miniature electrical car, Allen couldn’t resist the temptation to mount a chair on it in order that he may take it for a spin. Now that’s some actual incentive for pals to return and assist with a transfer!
Keep in mind, people — security third! Now that the dolly is full, Allen is trying so as to add some extra security measures, like seat belts, sooner or later. There are additionally plans to exchange among the 3D-printed plastic components with steel, and so as to add battery monitoring and a slew of different enhancements. Keep tuned to see the place this undertaking goes subsequent!
