Summer time is beginning to warmth up and we’re all attempting to remain cool. If maintaining cool isn’t simply in your thoughts on the park, but in addition at work, you would possibly simply be an embedded {hardware} engineer. All the pieces from pc chips to laser diodes and superior sensors will get scorching sizzling with out correct thermal administration. Designing cooling options will not be essentially the most attention-grabbing a part of a tool design, however it’s completely important.
A brand new improvement board designed by Sheetak known as the CryoSnap Thermoelectric Dev Equipment might not make thermal administration any extra enjoyable however it could considerably pace up the event course of. It’s a set of modules that mean you can quickly assemble, energy, and management an entire thermal system. As soon as the system has been validated, the modules may be embedded into the ultimate product design.
The contents of the package (📷: Sheetak)
The package is organized into 5 interconnected purposeful sections. A thermal module supplies a Sheetak CENTUM thermoelectric cooler, heatsink, fan, mounting {hardware}, and thermal interface supplies. A devoted TEC driver board handles bidirectional management by an H-bridge design and contains voltage and present sensing. Energy is equipped by USB-C Energy Supply with help for as much as 100 watts, or by an exterior DC supply as much as 32 volts. Management is dealt with by a detachable Arduino Nano, whereas a person interface part supplies native controls and telemetry show capabilities.
Customers can assemble the thermal stack, join a USB-C energy supply, choose a heating or cooling mode, and start gathering thermal information in lower than ten minutes. Actual-time telemetry may be streamed over a serial connection, making it straightforward to judge system efficiency and tune management algorithms.
One of many extra uncommon facets of the design is its modular, snap-apart development. As an alternative of treating the event {hardware} as a brief prototyping device, engineers can bodily separate the purposeful modules and reuse them in product prototypes. This method helps shut the hole between proof-of-concept testing and manufacturing improvement.

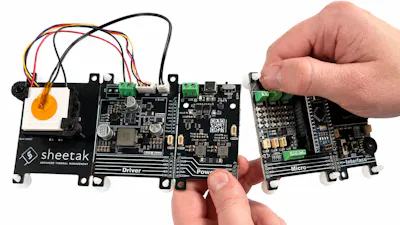

There are 5 modules (📷: Sheetak)
Potential makes use of embrace stabilizing laser diodes and photonics gear, decreasing thermal noise in imaging sensors, cooling localized sizzling spots in electronics, and performing thermal biking experiments for medical and laboratory instrumentation.
With a beginning worth of $119 — which is considerably decrease than many devoted laboratory thermoelectric controllers — CryoSnap is an accessible platform for engineers who must validate thermal designs rapidly. For groups trying to transfer from thermal idea to working prototype with out spending weeks constructing help electronics, Sheetak’s newest improvement package may supply a sensible shortcut.
