The best approach to get began experimenting with aerodynamics is to seize a sheet of paper and fold it into the type of an airplane. As soon as the enjoyable of that wears off, you’ll be able to take one other small step and toy round with wind-up planes. Powered by vitality saved in a twisted rubber band, these planes can maintain their flight for an extended time.

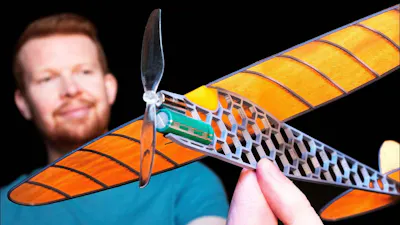

Or if all of this appears like youngsters’ video games to you, you possibly can construct a DIY supercapacitor aircraft like Tom Stanton lately did. He reimagined the traditional wind-up airplane utilizing trendy electronics, changing the rubber band with a supercapacitor, a motor, and a hand-cranked generator. The result’s a remarkably light-weight plane that may be charged in seconds and stay airborne far longer than its cost time may counsel.
Assembling the body (📷: Tom Stanton)
The airplane is designed round a 10-farad, 2.7-volt supercapacitor weighing simply round 3 grams. Whereas bigger capacitors can retailer extra vitality, Stanton decided that their added weight made them impractical for flight. Paired with a tiny brushed motor usually present in toy drones, the system delivers sufficient thrust to maintain the aircraft aloft regardless of working under the motor’s nominal voltage vary.
A carbon fiber rod kinds the fuselage, providing rigidity with out pointless mass. The wings and tail, nevertheless, are the place the construct turns into significantly creative. Stanton developed a method that includes 3D printing a skinny plastic lattice immediately onto tissue paper. The heated plastic bonds to the fibers, creating a light-weight, pre-skinned construction that’s harking back to what was used on the earliest airplanes.
As soon as printed, the wings are formed into an aerodynamic profile utilizing warmth and a curved template. This course of provides them an airfoil-like curvature, enhancing elevate. Early prototypes revealed points with drag and structural stress, prompting a shift to a excessive facet ratio wing design — lengthy and slender — which reduces vitality loss from wingtip vortices and improves effectivity.
The wing was 3D printed onto tissue paper (📷: Tom Stanton)
Stability is achieved by a delicate however efficient function: dihedral. The wings are designed to flex barely upward throughout flight, naturally stabilizing the plane with out advanced management programs. In the meantime, the positioning of the motor under the wing creates a thrust line that pitches the nostril upward below energy, serving to the aircraft climb shortly throughout its preliminary burst of vitality.
Charging the plane is so simple as turning a small hand crank related to a generator. An analog voltmeter ensures the capacitor stays inside its protected voltage restrict. In testing, simply 4 seconds of cranking supplied sufficient saved vitality for a flight lasting as much as 45 seconds.
Weighing in at solely 15.6 grams, the aircraft demonstrates how trendy elements and intelligent engineering can breathe new life into traditional ideas. Nevertheless, the construct shouldn’t be with out its challenges. The tissue-paper wings are delicate to environmental situations, significantly humidity, which might trigger them to sag and lose efficiency.
This challenge is one which you actually need to see in motion to totally respect. Make sure you take a look at the video under.
