Whether or not you’re designing a battery-powered good house sensor or a DIY handheld computing platform, minimizing power use is important for a superb consumer expertise. However earlier than you possibly can cut back energy consumption, you first have to measure it. That may be difficult to do at house when coping with microcontroller sleep states, for example, the place present draw is usually measured in nanoamps. The precision gear wanted to reliably measure present at this scale might be fairly costly.
A brand new high-speed, auto-ranging precision present adapter for multimeters and oscilloscopes referred to as TopCurrent was designed to make this functionality extra accessible. It does this by reworking normal voltage-measuring devices into extremely correct present analyzers. As an alternative of requiring specialised gear, the gadget converts enter present right into a proportional voltage output, with a easy 1 mV per-unit scaling relying on the lively vary. This permits customers to leverage present multimeters or oscilloscopes whereas attaining precision usually reserved for a lot dearer programs.

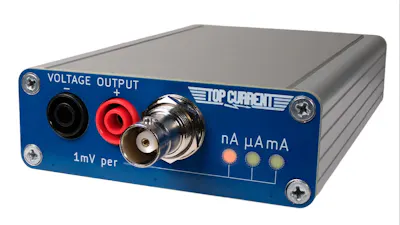

A have a look at the inputs and outputs (📷: Hexed)
TopCurrent has the flexibility to measure throughout an exceptionally wide selection—from as little as 1 nanoamp as much as 3 amps—spanning orders of magnitude. It accomplishes this with three routinely chosen ranges (nA, µA, and mA), eliminating the necessity for guide changes. The gadget additionally gives speedy vary switching, with upward transitions occurring in underneath 2.5 microseconds, enabling correct seize of fast-changing present profiles resembling these seen in wi-fi transmissions or processor wake cycles.
Regardless of its pace, TopCurrent maintains a really low burden voltage—usually simply microvolts per unit of present, and not more than 20 millivolts even throughout switching. That is crucial for making certain that the measurement course of itself doesn’t considerably alter the conduct of the circuit underneath take a look at, a typical situation in low-current evaluation.
The system operates with out firmware, microcontrollers, or ADCs, relying as a substitute on analog design methods to realize its efficiency. This simplifies operation and improves reliability, whereas additionally interesting to customers preferring clear, hardware-based options.
The inner {hardware} (📷: Hexed)
The gadget is housed in an aluminum enclosure with grounded PCB panels, forming a partial Faraday cage to cut back electrical noise. For connectivity, it contains each banana jacks and a BNC output, making it suitable with a variety of lab gear. Further flexibility is supplied by enlargement area contained in the enclosure, permitting customers to combine customized add-ons resembling shows or microcontroller-based logging programs.
TopCurrent is an open supply pleasant mission, with plans to launch design recordsdata and schematics publicly. This might allow additional innovation and customization by the neighborhood, from noise filtering enhancements to sooner switching optimizations.
The gadget might be launching quickly on Crowd Provide, and you may join notifications to remain within the loop.
